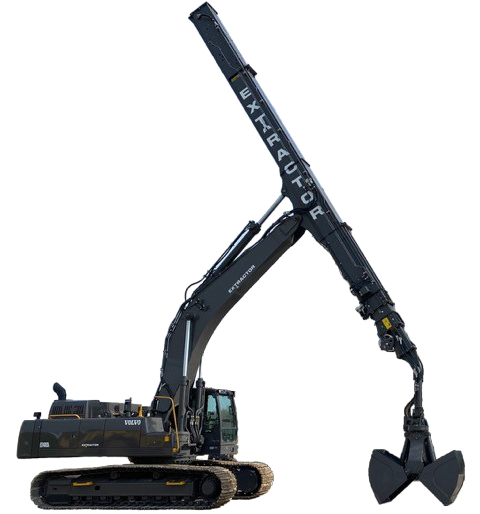

ShearForce EXTRACTOR

Deep Excavation Excavator

This 98 ft. Deep Excavation EXTRACTOR is mounted on a Volvo EC480DL carrier. The EXTRACTOR arm delivers inexhaustible extraction rates while exhibiting the best productivity and performance in bulk load out of deep excavation work.

• 98 Ft (30M) Telescopic Arm
• 1.7 Cu. Meter Clamshell Capacity (2.2yd³)
• Cycle Time Speed – 15 Sec. DOWN – 12.5 Sec. UP
• Estimated Average of 123.6 m³/hr (161.6yd³/hr)
• Hydraulic Clamshell Rotation for precise positioning/loading of trucks
• The world’s first “Back-Fill” function allows for the telescopic clamshell to safely lower aggregates, sand, and other materials back into the excavation
• Ultra-Fast Cycle times cut deep excavation costs by 75% – One Man/One machine
• Twin downward & upward ropes for optimum safety. Each rope is rated for 5x its working load
• High Yield low maintenance section slide system
• Automatic Equalizer system
• Access panels allow for quick easy access to all internal components and plumbing
• 2013 Volvo EC480DL Carrier​
• Additional Counterweight – Easily removable for Standard Front Operation
• Centralized greasing points
• Hardox construction for optimum Strength and Durability
• Easily Mount & Dismount from the Excavator
• ​Fully Inspected, Maintained, and Serviced by ShearForce
