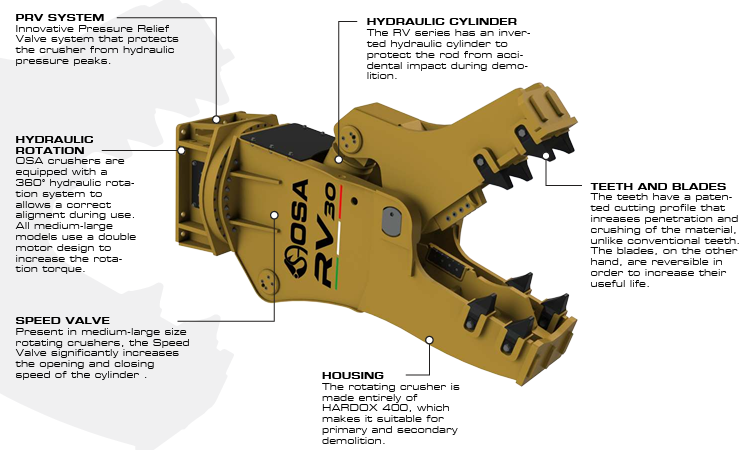

RV Hydraulic Rotating Pulverizers are engineered to meet both primary and secondary demolition requirements. Constructed with HARDOX 400, they are built to withstand wear and tear. These pulverizers feature a regenerative circuit for rapid jaw opening and closing. The 360° hydraulic rotation ensures precise positioning in any working condition. They all share the following characteristics:
- An innovative “PRV” (Pressure Relief Valve) system protects the pulverizer from high pressure
- Constructed with HARDOX 400
- Reversed cylinder to safeguard the rod
- Fast valve
- Interchangeable blades
- Innovative interchangeable teeth system
10 models to choose from in this series
A model to fit any size machine
“PRV” System
Protects from high-pressure
Hydraulic Rotation
360° rotation in both directions
Got a question?
We’re here to help you pick out the best tool that suits your unique needs.
Media Gallery
Photos
Video
View more videos
Industry
This equipment is utilized in the following industries:
Compatible Equipment
-
Large Excavators
-
Small Excavators
Specifications
| MODEL | WEIGHT (LB) | OPENING (IN) | MACHINE SIZE (TON) |
| RV06 | 1455 | 20 | 7-12 |
| RV10 | 2436 | 25 | 9-15 |
| RV16 | 3769 | 31 | 15-20 |
| RV20 | 4400 | 33.5 | 20-26 |
| RV25 | 5511 | 34.6 | 25-32 |
| RV30 | 6547 | 39.7 | 30-40 |
| RV40 | 8333 | 45 | 38-55 |
| RV60 | 13228 | 50 | 50-80 |
| RV80 | 17196 | 53 | 70-90 |
| RV110 | 21936 | 68 | 90-120 |
