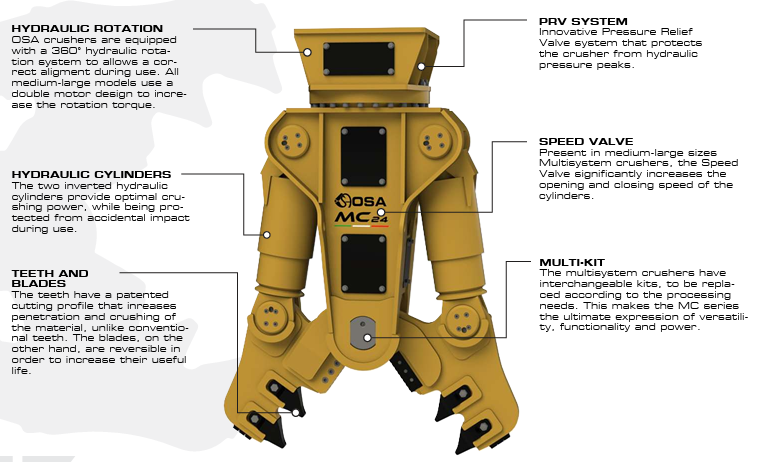

MC Series is the best expression of functionality and versatility. With a variety of kits that integrate seamlessly with the main machine structure, the MC series meets every requirement and adapts to any scenario in demolition projects. The MC has the following characteristics:
- Entirely constructed with HARDOX and WELDOX
- Innovative PRV (Pressure Relief Valve) system to protect the crusher from high-pressure
- Two powerful reversed cylinders safeguard the rod from accidents
- Some models feature a regenerative installation
- Hydraulic rotation
- An integrated hydraulic system allows the multi-system to perform 360° rotation in both directions, ensuring fast, accurate, and efficient jaw positioning in any working condition. Ideal for operators using excavators with very long booms
- Innovative interchangeable teeth system

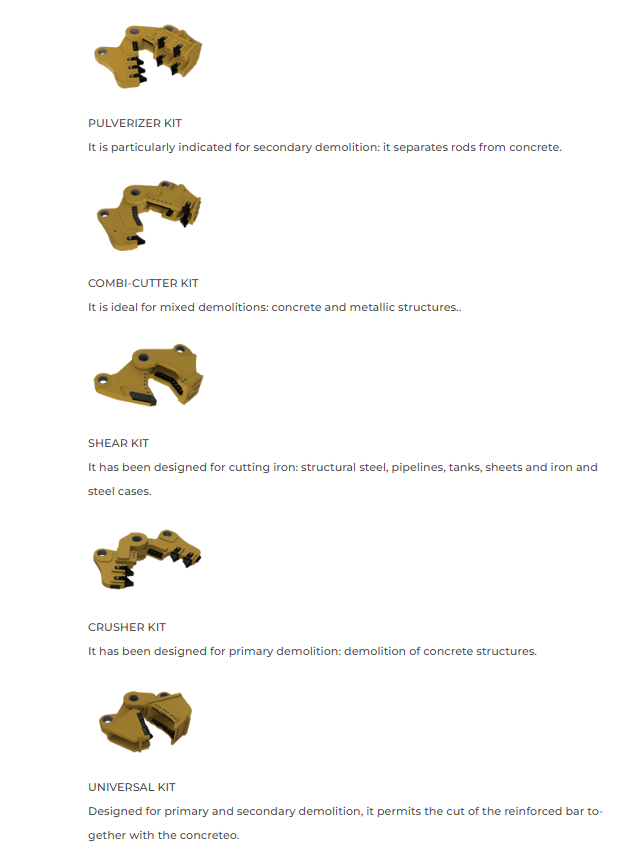

Kits:
- Crusher kit
- Pulverizer kit
- Shear kit
- Combi-cutter kit
- Universal kit
12 models to choose from in this series
A model to fit any size machine
Functional and Versatile
5 kits to choose from
Hydraulic Rotation
360° rotation in both directions
Got a question?
We’re here to help you pick out the best tool that suits your unique needs.
Media Gallery
Photos
Industry
This equipment is utilized in the following industries:
Compatible Equipment
-
Large Excavators
-
Small Excavators
Specifications
| MODEL | WEIGHT (LB) | OPENING (IN) | MACHINE SIZE TON |
| MC07 | 992 | 20.8 | 7-11 |
| MC10 | 1433 | 26.4 | 12-15 |
| MC15 | 2182 | 28 | 14-19 |
| MC18 | 2667 | 31.5 | 21-28 |
| MC24 | 3615 | 33.5 | 26-36 |
| MC30 | 5247 | 36.2 | 30-38 |
| MC40 | 5534 | 47.2 | 36-50 |
| MC55 | 8357 | 51.2 | 50-70 |
| MC80 | 11508 | 66.9 | 80-100 |
| MC110 | 16094 | 74.8 | 85-130 |
