2009 Volvo EC700 CL High Reach Demolition Excavator
- 8,972 hours
- 115 ft Kocurek- 3 pc telescopic boom
- Auxiliary hydraulics,
- Hydraulic quick boom change
- Check valves
- Tilting A/C cab
- Extra Counterweight
- Variable gage undercarriage
- Rear view camera
- Standard boom w/ 2900 mm stick and QC bkt, cradles.
- Fully Serviced, Inspected, Maintained, and Repaired as necessary
- Extensive List of Repairs Listed Below
Equipped with a complete KOCUREK Demolition Conversion. This machine has been through the shop for all necessary maintenance according to the current hours. A thorough inspection, cleaning, testing, and repair process was followed to ensure that the machine is in work-ready condition upon completion in our workshop to offer our customer a strong, reliable demolition machine.
Repairs Completed:
ENGINE:
- Timing cover removed and resealed (due to an engine oil leak at the head)
- New rear main crankshaft seal installed.
- Injector harness resealed at head
- Valve cover gasket and crankcase vent o-ring replaced
- Fuel injection pump o-ring replaced
- Fan belts, idler, and tensioner unit replaced
- Prior to the purchase of the machine, the previous owner allegedly replaced the injector cups and cylinder head gasket
FUEL SYSTEM:
- Fuel tank was completely drained, removed, and thoroughly cleaned
- Sight glass replaced
- Breather vent replaced
- Supply port seal replaced
- Screen in tank replaced
COOLING SYSTEM:
- All screens and covers were removed for thorough inspection & cleaning of the radiator, oil cooler, a/c condenser, etc
- Replaced coolant reservoir, sensors, and cap
- New anti-freeze used to fill to spec. with appropriate mix (%)
- Oil cooler o-rings, hoses, and connection “bungs” replaced
REGULAR MAINTENANCE/SERVICING:
- Final Drive oils changed
- Swing gear oil changed in both units
- Engine and Cabin air filters changed
- Hydraulic filters changed (Tank return, Pilot, Suction, and Case Drain)
- Hydraulic oil changed
- Fuel filters changed & new fuel in tank after cleaning.
- Engine Oil & Filter changed
- All fittings greased
- Swing ring and pinion gears inspected and greased as required
- Pressure washer pump oil changed
NOTABLE REPAIRS COMPLETED:
- Swing drive compensation valves resealed
- Many new hydraulic lines throughout the entire machine
- Resealed STUCCHI couplings
- Main boom connection to the machine frame was line bored, and new bushings, and seals
- Hydraulic pump drive coupling (between the engine and pump) replaced
- Boom Cylinders Removed, and resealed
- Boom cylinder frame bores line-bored, new bushings and seals installed in upper and lower bores
- New hour meter was installed due to damaged glass and mount. (Hours were confirmed to be 8,971.18 in February 2024 by Strongco using a laptop with the Volvo CE program)
- All track frame bolts were removed, cleaned, threads tapped, and lubricated
UHD Telescopic Demolition Boom
The 35M High Reach Demolition Boom was thoroughly inspected and tested just the same as the base machine. This front was installed onto the machine, and all functions were cycled to verify operation and to identify any concerns.
Repairs Completed:
- Arm Cylinder removed and resealed
- Bucket Cylinder removed and resealed
- Transport Joint lower bores Line-Bored to spec. & New bushings installed
- Transport Joint upper bores New bushings installed
- All hoses showing signs of damage, or leakage were replaced
- Energy Chain replaced with new to hold hoses at telescopic section
- Bushings & seals replaced at bucket linkage/attachment connection
- We will be hiring KOVA Engineering to complete a full inspection of the UHD boom to identify any cracks, or areas of concern. ShearForce will appropriately react to any concerns found, repairing as necessary prior to delivery.
UHD Bucket Linkage Specs:
Stick Pin Diameter: 80mm
Link Pin Diameter: 80mm
Stick Width: 326mm
Pin Centres: 500mm
Standard Excavating Front
Includes Coupler and Bucket Shown in image below (AS IS)
The standard excavating boom can be installed in two configurations.
1) Straight Boom for Demolition work
2) Arch Boom for excavation, crushing, Etc..
This front comes with a cradle frame to store the boom when it is not in use. Using the hydraulic pin joint, this can be removed/installed in a short time with limited tools.
Repairs Completed:
- Stick cylinder was Removed/Resealed
- Any hoses showing signs of damage due to wear or sun cracking were replaced
- Slight Play at Coupler/Bucket – No work was completed to repair the play in the coupler, pins, or bucket as we did not feel that it was worn to the point necessary versus the investment required to repair to original spec

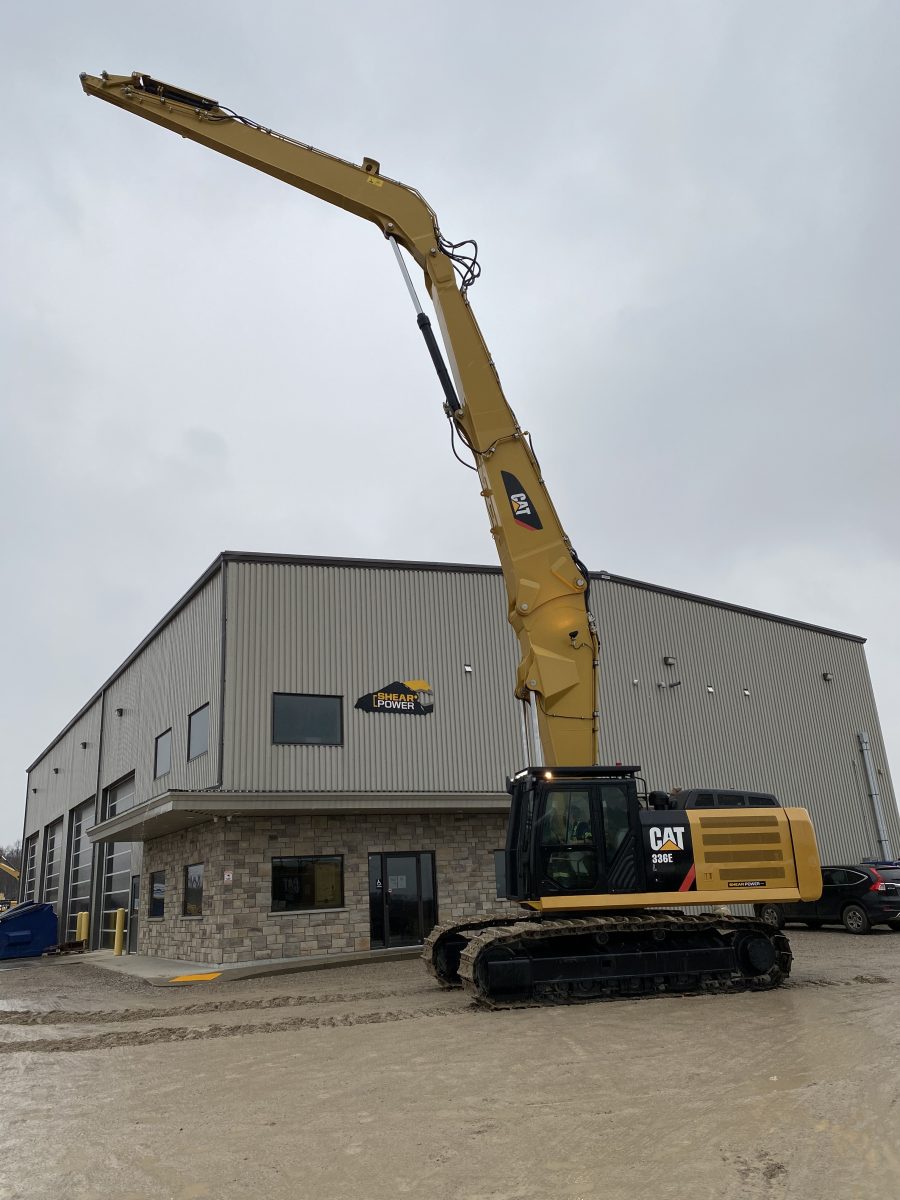

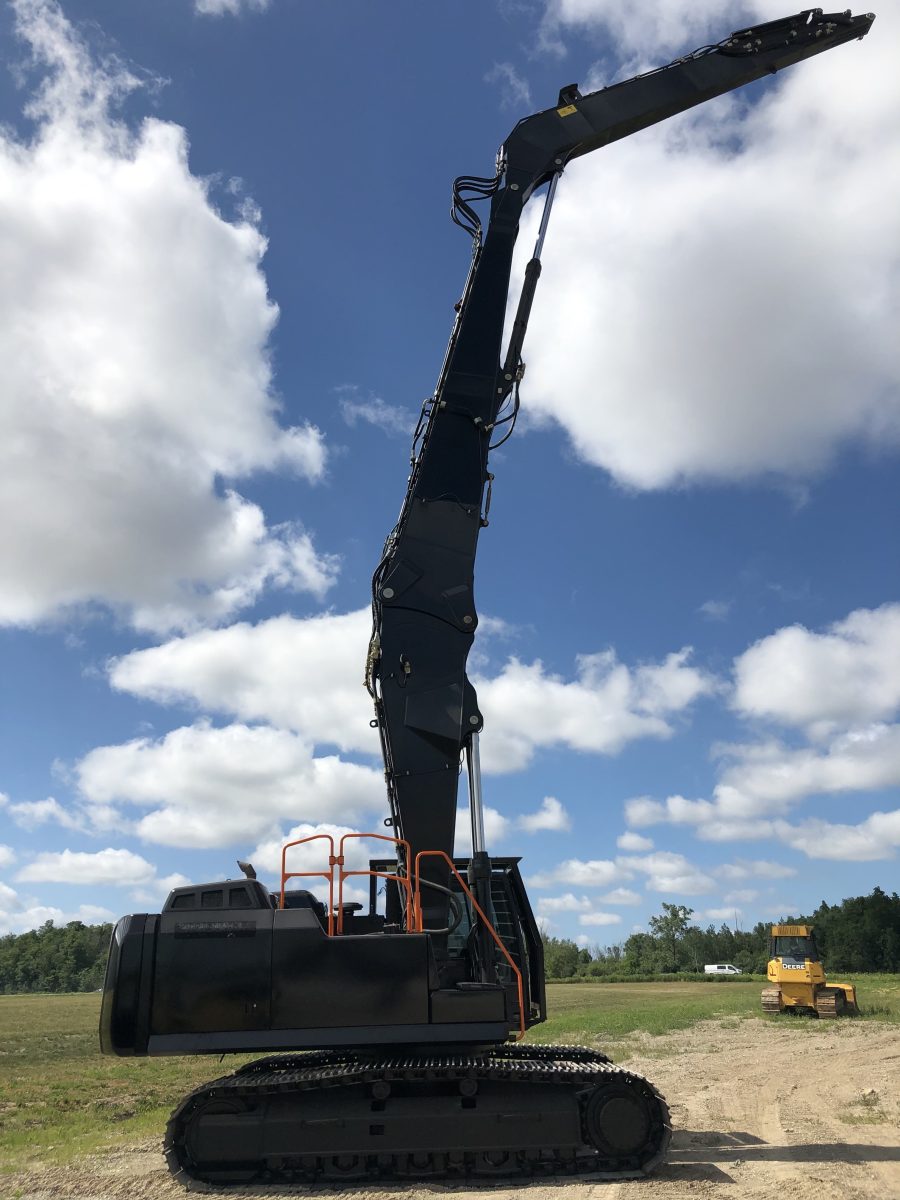

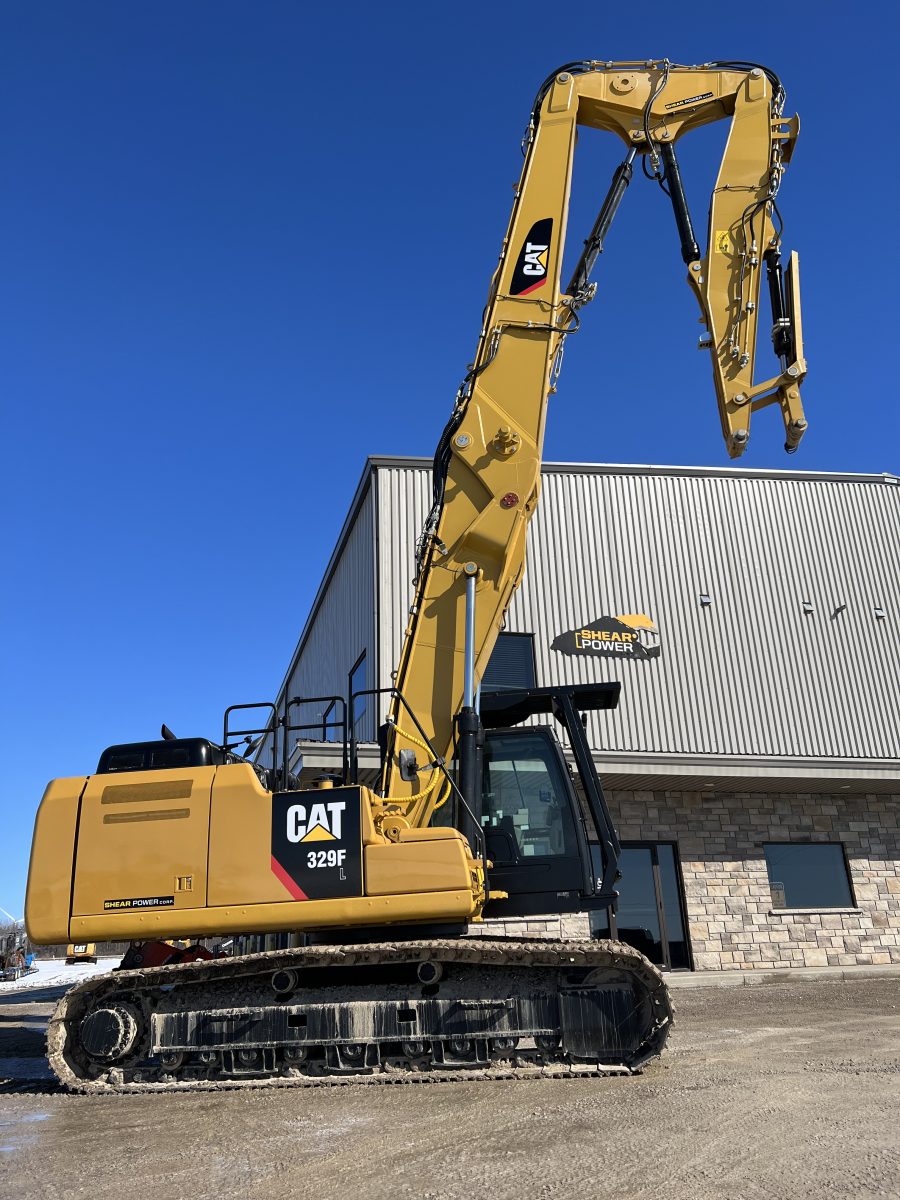

We can customize and build a high reach for you
ShearForce can customize a high-reach excavator for your company using an existing machine from your fleet, an available machine from our shop, or source out a new machine to suite your needs. Then working with you and the specifications that you require we mount a NEW boom built and customized to your prerequisites. Contact us now to find out more!
